Stainless Steel Wedge Wire Wound slot Screen Tube
Product Description:
Stainless Steel Wedge Wire Wound slot Screen Tube developed by Johnson Screen to solve the problem of solid-liquid separation has been widely used in oil, gas, water well sand control, refining, food filtration, nuclear power and other fields worldwide, especially in the nuclear power industry and petrochemical hydrogenation reforming unit. Because of the excellent performance of the product, so that it is useful in many fields, Johnson mesh is welded by the surface wire around a circular arrangement of a group of longitudinal support wire welding. The welding process is divided into: argon arc spot welding and intermediate frequency resistance welding.
The gap opening data of Johnson's net is formed by spacing continuous wire welding to form the ideal gap size. The individual slot space of Johnson net can be different in the production process. In fact, a single section of Johnson's net can also be made to create gaps of different precision when working environment conditions require changes. This is conducive to the use of the process to reach the limit of the application.
Advantages:
The slit size is accurate and the filtering precision is high.It has the advantages of strong structure, high ventilation efficiency, good heat dissipation, high temperature resistance, corrosion resistance, good mechanical properties, long service life, safe and reliable.
It has high strength, stiffness and bearing capacity, and can be used as a rigid screening filter for various shapes.This product is made of advanced fusion welding technology. The screen has the highest screening efficiency, the strongest anti-tensile capacity, the minimum maintenance requirement, and the longest service life.
We can also frame the arc-shape screen with polyurethane to strengthen its structure and make it have longer service time
Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L 2205 2507 and so on
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.
| SIZES OF THE WIRE AND ROD |
| Wire |
|
|
|
|
|
|
| Width(mm) |
1.0 |
1.2 |
1.5 |
2.3 |
3.0 |
|
| Height(mm) |
2.0 |
2.2 |
2.5 |
3.5 |
4.6 |
|
| Rod |
|
|
|
|
|
Round wire |
| Width(mm) |
2.3 |
2.3 |
3.0 |
3.7 |
3.3 |
Diameter |
| Height(mm) |
2.7 |
3.5 |
4.6 |
5.6 |
6.3 |
0.25-0.5m |
Special specification can be made according to your need.
Benefits:
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
Slot even
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel have the high corrosion resistance
Easy to backwash, clean without dead Angle.
Filter from inside to outside , and the outside slot is bigger than inside slot, so it is easy to bakc flush.
Built-in scraper, brush, suction first class cleaning device.

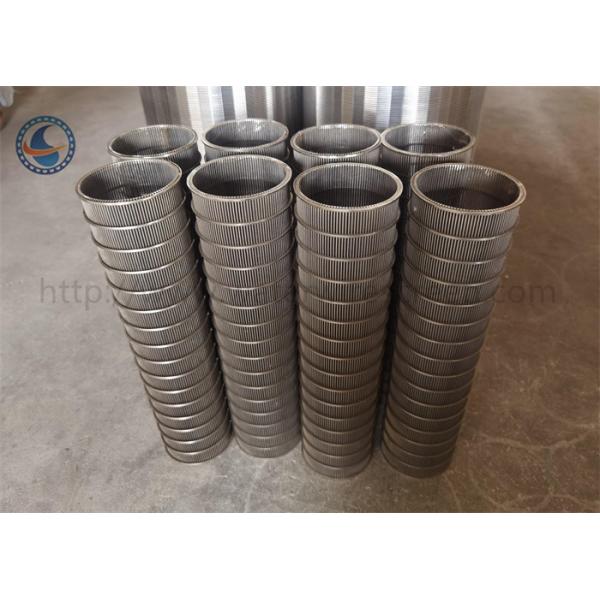

Pictures:
