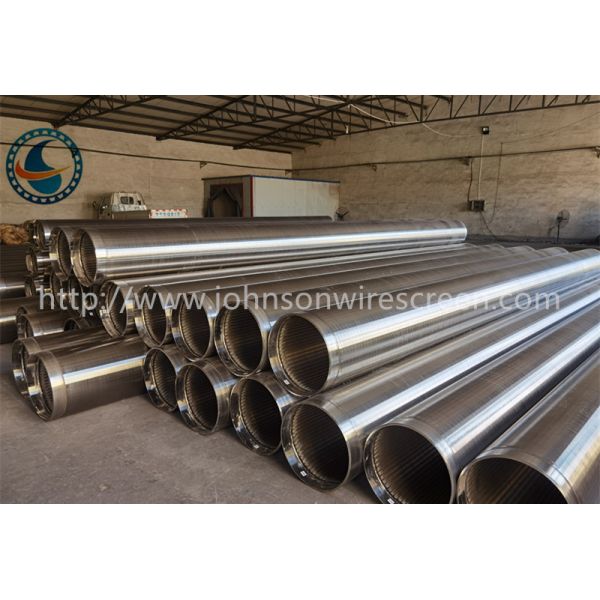

| Name:Oil Well Sand Screen,Continuous Slot Water Well Screen, Water wire screen, Wedge wire screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen filter, Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen. |
| Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized etc. |
| Diameter: 3", 4", 6", 8", 10", 12", 14", 16", 18" etc. |
| Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table) |
| Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container) |
| Wrap wire:2*3.5mm,2.2*3.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3.2*6mm,4*7mm etc. |
| Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire. |
| Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc. |
| Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine, Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc. |
| Sizes (inch) | OD (mm) | Slot (mm) | Length (m) | Tenslie Strength | Collapse Strength | Wrap wire Vee-shaped wire(mm) | Support rod Round wire(mm) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.0*3.5(Width*height) | ø3.8MM×22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.0*3.5(Width*height) | ø3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.0*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.2*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.0*6.0(Width*height) | ø6.0MM×32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.2*3.5(Width*height) | ø3.8MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*4.6(Width*height) | ø4.0MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.0*6.0(Width*height) | ø5.0MM×48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.2*3.5(Width*height) | ø4.0MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*4.6(Width*height) | ø4.8MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0(Width*height) | ø5.0MM×55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0(Width*height) | ø4.0MM×56 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0*5.5(Width*height) | ø4.0MM×59 |
| 16 | 426 | 1.0 | 2.9 | ＞80 | 37.5 | 3.0*5.5(Width*height) | ø4.0MM×64 |
